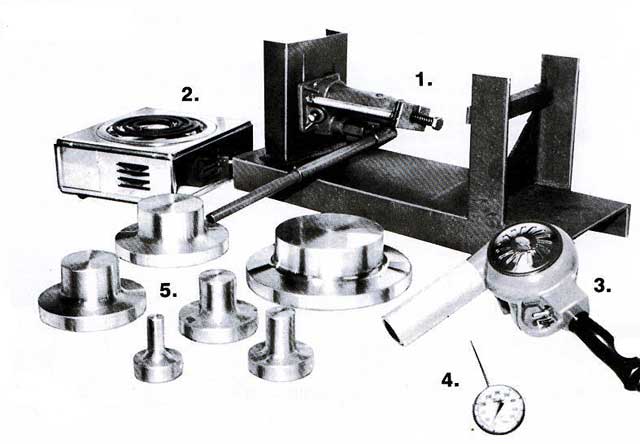

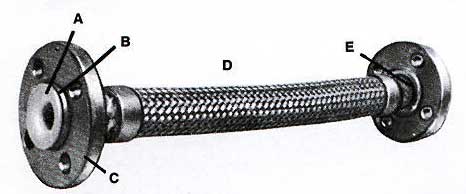

Flarelock, Flexible Hose, and Flaring Tools FLARELOCK FusiBond's newest innovation keeps PTFE joints tight under adverse conditions. Everyone knows PTFE cold flows. At elevated temperatures things get even worse. "FlareLock" can solve the problem. High pressure, cycling temperatures or long straight runs can result in leakage. Only "FlareLock" can stand the higher plastic face load necessary to keep the joint tight. Belleville Disc Springs can also be used with the flange bolts to maintain the plastic Face Sealing pressure when extreme conditions are encountered on pipe and fittings. FlareLock is available thru 12" size. Remember when using a PTFE lined loose flange system only FlareLock does it better. Click on image for larger view LINED FLEXIBLE HOSE A- PTFE liner, PFA liner or Kynar Flex® Liner B- Carbon steel lap joint stub end. Both ends. C-150 Ib. ANSI Flange, DI or steel. D- Stainless steel metal hose & braid. E-1/8" dia. vent holes. Two holes 180° apart each end except Kynar Flex®. Click on image for larger view FIELD FLARING TOOLS Hydraulic Flaring Assembly HotPlate Heat Gun Thermometer Flaring Heads Perfect Faces each and every time with Fusibond Tools. Quick and easy Field Flaring by just heating the head and hydraulically pushing it against the flange face. its just that fast and simple. Ask for a demonstration. For complete information ask for our Field Fabrication and installation manual or our instructional video. Click on image for larger view
